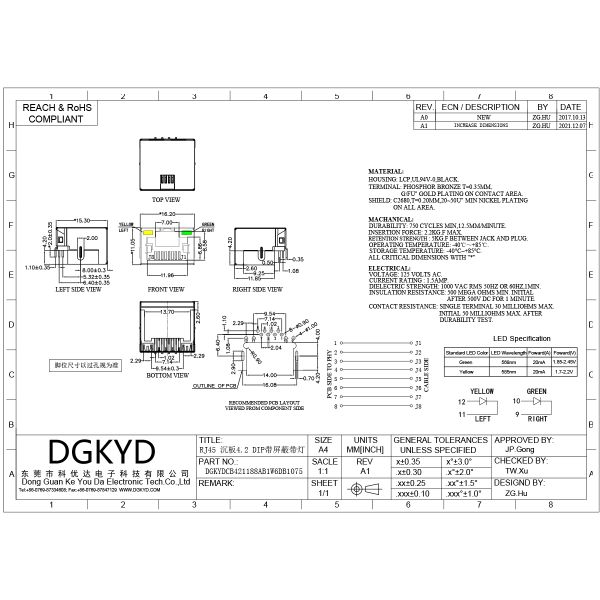

Drawing

PCB Magnetic Jack With Megabit Transformer SMD SINK RJ45 Ethernet Connector KRJ-CB060YGZENL

Product Specification Document
DGKYDCB421188AB1W6DB1075.pdf

Paramters

Our strengths:

Interface type: crystal head application: 10 / 100 / 1000BASE-T Ethernet

Type: RJ45 built in magnetics

Working frequency: high frequency characteristic: filtering, anti-interference

Working temperature:- 40 ℃ - 85 ℃

Storage temperature: - 40 ℃ - 85 ℃

Lead free soldering: wave soldering height up to 265 ℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

1. Business mode: Manufacturer

2. Delivery time: on time delivery, around two weeks.

3. Specs for choices: LED indicator light(green, yellow, red, orange, blue, bi-color LED)

Shield with EMI fingers or not

coil ratio of magnetic core

magnetics circuit diversification optional

contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)

plastic housing material (PBT,PA46,PA9T, LCP)

4. The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!

FAQ:

1. Q: Are you trading company or manufacture?
A: We are manufacture. Welcome to our factory.

2. Q: What about your lead time?
A: For products in stock, the goods will be delivered within 5-7 working days after payment. For customized products and products that are out of stock, the delivery time should be confirmed according to your order quantity.

3. Q: Can you provide samples? Are they free?
A: Yes. Usually we can provide 2-3 samples of standard products free for testing.

4. Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11-year OEM experience, we are fully capable of customizing products for you.

DGKYD - An Overview

DGKYD (www.dgkyd.com) and its divisions are primarily engaged in the design, manufacture, and sale of Ethernet connectors(RJ45/RJ11) and transformers used in networking, telecommunications, high-speed data transmission, commercial aerospace, military, industrial electrical, and consumer electronics.

DGKYD development and production center located in Dong Guan of China. With over 10 years of experience, we lead the industry in R&D investment, striving to develop and deliver innovative, high-quality, reliable solutions that can be customized to meet your needs. Coupled with personalized service, few companies can approach DGKYD's responsiveness. DGKYD has reliably demonstrated the ability to succeed in a variety of product areas across multiple industries.

What does all of this really mean? Your time can be spent concentrating on network and business strategies rather than worrying about the compatibility, flexibility and viability of your telecommunications supplier.

Together, we can turn your vision into reality.

Thank you for visit. For any further information, please feel free to contact us.
