Brand Name :	DGKYD
Model Number :	KRJ-56S8P8C1X4GYNL
Certification :	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Price :	Please contact us to get the latest price.
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :	100K pcs/day
Delivery Time :	10 days

Add to Cart

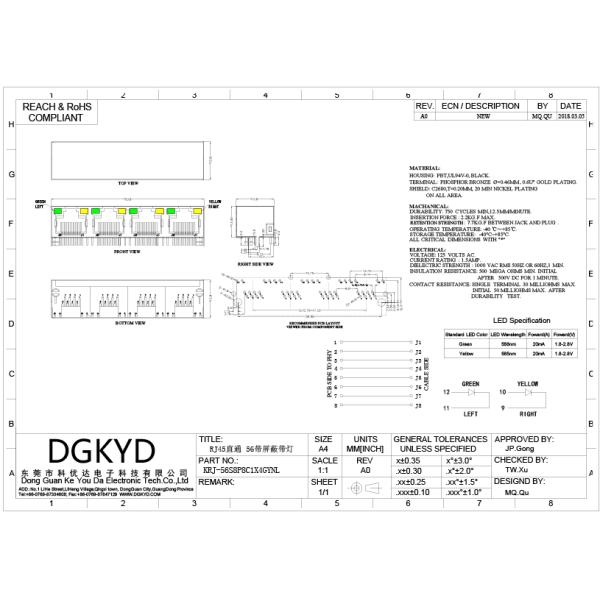

Shield side entry tab up 1x4 quad port ganged RJ45 keystone jack with G/Y LED
ATTRIBUTE	ATTRIBUTE VALUE
TEMPERATURE	-40℃ to +85℃
SHIELD PLATING MATERIAL	NICKEL
SHIELD	METAL SHIELD
ROHS COMPLIANT	YES
PCB MOUNT ANGLE	SIDE ENTRY
PACKAGE	DIP
CONNECTOR & CONTACT TERMINAATES TO	Printed Circuit Board
NUMBER OF PORTS	1X4
NUMBER OF CONTACTS	8
LED OPTION	G/Y LED
LATCH ORIENTATION	LATCH UP
HOUSING MATERIAL	PBT UL94V-0
CONTACT MATING AREA PLATING	GOLD 6U'' PLATING
CONNECTOR TYPE	RJ45
CONNECTOR MATERIAL COLOR	BLACK

Applications:

Product Tags:

multi rj45 connector
