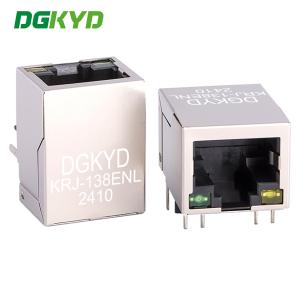

KRJ-138ENL 8p8c Network 100 megabit cat6 RJ45 Connector with
internal magnetics , Registered Jack
Product Specification Document
KRJ-138ENL.pdf
| Part Number | KRJ-138ENL | Brand | DGKYD/OEM/ODM |
| Product Type | Connector-Modular | Connector Style | Jack |
| Jack Type | RJ45 | Connector Type | Modular Jack |
| Latch Style | Standard | Latch | TAB-UP |
| Filter | With Filter | LED Option | With LED |
| LED Color | Green/Yellow | Panel Stops | Without Panel Stops |
| Shielded | With metal shield | Applies To | Printedout Circuit Board |
| Port Configuration | 1X 1 Ports | Number of Positions | 8 |
| Jack Configuration | 1 x 1 | Terminals per Port | 8 |
| Shield Material | Copper Alloy preplated with Nickel | PCB Mounting Orientation | Side Entry (Right Angle) |
| Contact Mating Area Plating | Gold 6u | Contact Base Material | Phosphor Bronze |
| Solder Tail Contact Plating Material | Tin-Lead over Nickel | PCB Mounting Style | Through Hole |
| Termination Method to PC Board | Through Hole-Press-Fit | Board Lock | With/Without Board Lock |
| Housing Material | PBT Polyester | Housing Color | Black |
| Housing Material Temperature | Standard | UL Flammability Rating | UL 94V-0
|
RJ45 Connector Description:
The KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with
Internal Magnetics Registered Jack is a high-quality network
connector designed for use with 100 Megabit CAT6 Ethernet networks.
This product is manufactured according to strict quality standards
and is extensively tested to ensure maximum performance and
reliability. The connector is equipped with an RJ45 interface type
and features a registered jack with internal magnetics, which
provides superior signal quality and performance. It is ideal for
use in a wide range of Ethernet applications, including routers,
switches, hubs, and other networking equipment.
Cat6 RJ45 Connector Performance:
- 10/100Base-Tx RJ45 single port 1X1 Vertical with LEDS with side
entry
- Single port 1X1 Tab-Down RJ45 with internal magnetics
- Internal magnetics are 100% electrically tested for HI-POT and
functionality
- Suitable for CAT5&6 fast Ethernet Cable or better UTP
- 350uHminimum OCL with 8mA bias current
- High performance for maximum EMI suppression
- Minimum 1500Vrms isolation per IEEE 802.3 requirement
- ROHS-6 peak wave solder temperature rating 260℃
- Operating temperarure range :-40℃ to +85℃
- Storage temperature range :-40℃ to +85℃
- Number of positions:8
- Number of contacts loaded:8
- Shield:YES
- Rohs compliant(GP)
- Length:21.3mm(0.85inch)
- LEDS:LEDS distance 4.9mm
- EMI fingers:NO
- LEFT LED:Green,RIGHT LED:Yellow
- Usage:HR911105A/KRJ-138ENL
This connector is designed with high-frequency characteristics to
provide filtering and anti-interference properties, ensuring
reliable data transmission. It is capable of operating within a
wide temperature range, from -40℃ to 85℃, and can withstand
lead-free wave soldering with a height of up to 260℃. The
KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with
Internal Magnetics Registered Jack is a high-quality and reliable
network connector that offers superior performance and durability.
RJ45 Connector Application:
The KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector with
Internal Magnetics Registered Jack is ideal for use in a wide range
of Ethernet applications, including routers, switches, hubs, and
other networking equipment. It is designed to provide superior
signal quality and performance, making it an ideal choice for
demanding Ethernet applications.
FAQ:
Q: What is the maximum working temperature of the KRJ-138ENL 8P8C
Network 100 Megabit CAT6 RJ45 Connector with Internal Magnetics
Registered Jack?
A: The maximum working temperature of this connector is -40℃ to
85℃.
Q: Does this connector come with a registered jack and internal
magnetics?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector
comes with a registered jack and internal magnetics.
Q: What is the interface type of this connector?
A: This connector is equipped with an RJ45 interface type.
Q: What is the working frequency of this connector?
A: This connector is designed with high-frequency characteristics
to provide filtering and anti-interference properties.
Q: Can this connector be used with routers, switches, and other
networking equipment?
A: Yes, the KRJ-138ENL 8P8C Network 100 Megabit CAT6 RJ45 Connector
with Internal Magnetics Registered Jack is ideal for use in a wide
range of Ethernet applications, including routers, switches, hubs,
and other networking equipment.
Our Advantage:
DGKYD designs and manufactures a wide range of IEEE 802.3 compliant
LAN product including Discrete Ethernet Transformers, a complete
line of integrated RJ45 FastJacks, Common Mode Filters, Token Ring
Magnetics, and Fibre Channel Transformers.
