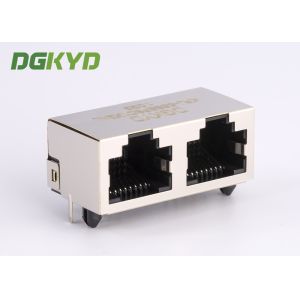

10 / 100 / 1000 Base-Tx 1 x 2-Port RJ45 Modular Jacks Rohs Compliant

• 10/100/1000Base-Tx RJ45 2 port 1X2 Side Entry (Right Angle) without LED
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :-40℃ to +85℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Shieded:YES
• Rohs compliant
• LEDS:NO

Material specifications:

• Plastic core:Glass fiber filler PBT Black(UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 0.6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT Black (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated

DGKYD - An Overview

DGKYD (www.dgkyd.com) and its divisions are primarily engaged in the design, manufacture, and sale of Ethernet connectors(RJ45/RJ11) and transformers used in networking, telecommunications, high-speed data transmission, commercial aerospace, military, industrial electrical, and consumer electronics.

DGKYD development and production center located in Dong Guan of China. With over 10 years of experience, we lead the industry in R&D investment, striving to develop and deliver innovative, high-quality, reliable solutions that can be customized to meet your needs. Coupled with personalized service, few companies can approach DGKYD's responsiveness. DGKYD has reliably demonstrated the ability to succeed in a variety of product areas across multiple industries.

What does all of this really mean? Your time can be spent concentrating on network and business strategies rather than worrying about the compatibility, flexibility and viability of your telecommunications supplier.

Together, we can turn your vision into reality.

Thank you for visit. For any further information, please feel free to contact us.
