10 PIN RJ45 With Integrated Magnetics Gigabit Cat 6 RJ45 Connector

Ask Lasest Price
Brand Name :	DGKYD
Certification :	RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Delivery Time :	10 days
Payment Terms :	T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :	100K pcs/day
Model Number :	KRJ-SH202ZNL
Price :	Please contact us to get the latest price.

Add to Cart

Product Details
Company Profile

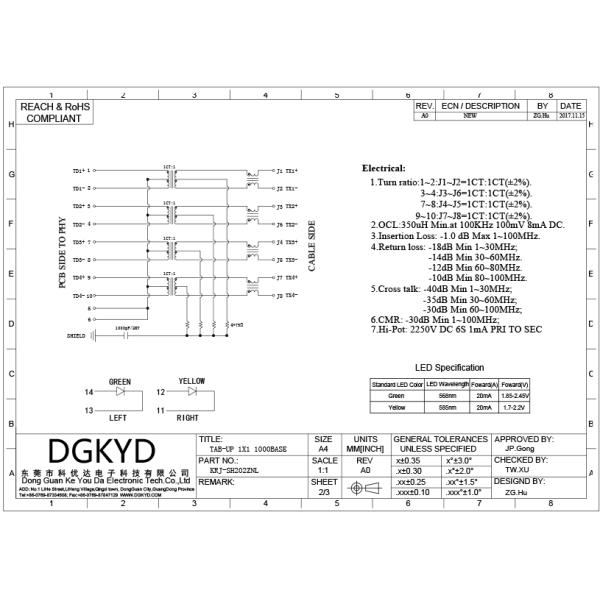

10 PIN RJ45 With Integrated Magnetics Gigabit Cat 6 RJ45 Connector

Metal shielded 10 PIN RJ45 Magnetics , 1000 Megabit Cat 6 RJ45 female connector

Part Number	KRJ-SH202ZNL	Brand	DGKYD/OEM/ODM
Place of Origin	Guangdong of China	Certification	ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type	Connector-Modular	Connector Style	Jack
Jack Type	RJ45	Connector Type	Modular Jack
Latch Style	Standard	Latch	Up
Filter	With Filter	LED Option	With LED
LED Color	Green & Yellow	Panel Stops	With Panel Stops
Shielded	Yes	Applies To
	1000 BASE-T	Grounding Options	Panel Ground and PCB Ground
Jack Configuration	1 x 1	Terminals per Port	8
Shield Material	Copper Alloy preplated with Nickel	PCB Mounting Orientation	Side Entry (Right Angle)
Contact Mating Area Plating Material	Gold 6u/15u/30u/50u	Contact Base Material	Phosphor Bronze
Solder Tail Contact Plating Material	Tin-Lead over Nickel	PCB Mounting Style	Through Hole
Termination Method to PC Board	Through Hole-Press-Fit	Board Lock	With/Without Board Lock
Housing Material	PBT Polyester	Housing Color	Black

Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-400℃ to +85℃
Storage temperature range :-40℃ to +85℃
